Urban streets bring pedestrians, vehicles, transit stops and crossings into a limited space. The right guardrail should support a clearly defined safety function while fitting the street layout and preserving usable pedestrian routes. For project teams, selection starts with the site and the intended function, then moves to materials, documentation, installation and long-term upkeep.

First, Define What the Guardrail Must Do

A pedestrian railing guides or channels foot traffic. A vehicle restraint barrier is designed to contain or redirect an errant vehicle and must be selected as a tested safety system. The two products serve different purposes and should not be treated as interchangeable based on appearance alone. FHWA explains that a vehicle guardrail works as a system involving the rail, posts, connections, end treatment and anchorage (FHWA Guardrail 101).

For pedestrian guardrails, local authorities should assess whether a railing is needed at the specific location and how it will affect walking and crossing routes. The UK Department for Transport's guidance describes this assessment process for local road schemes (LTN 2/09).

1. A Safety Function That Fits the Site

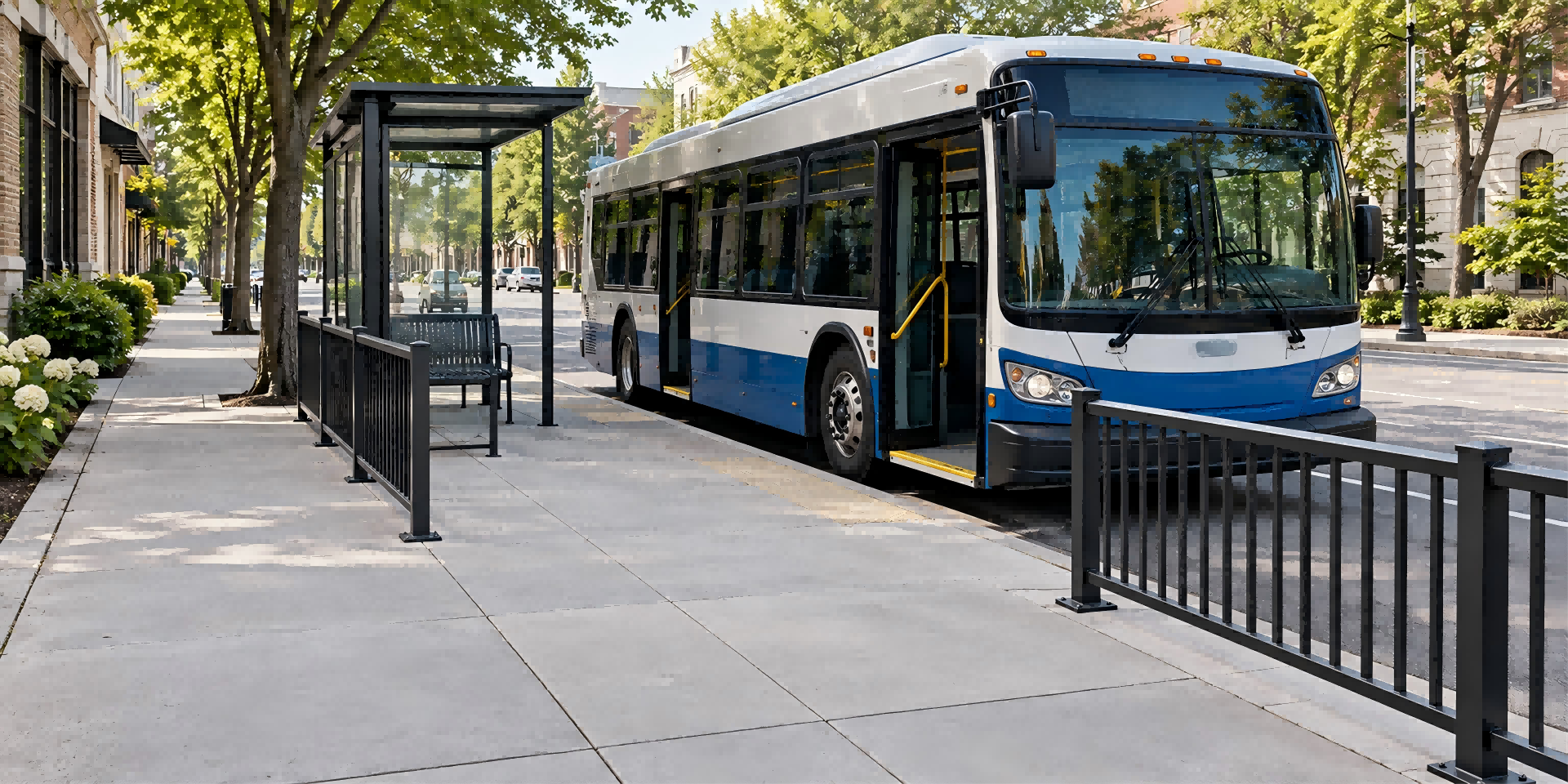

Start with the problem the project is trying to solve. A railing may guide pedestrians toward a designated crossing, separate a footway from moving traffic, or organize movement near a school, junction or transit stop. Site surveys should consider pedestrian desire lines, traffic conditions, entrances, crossing points and available footway width.

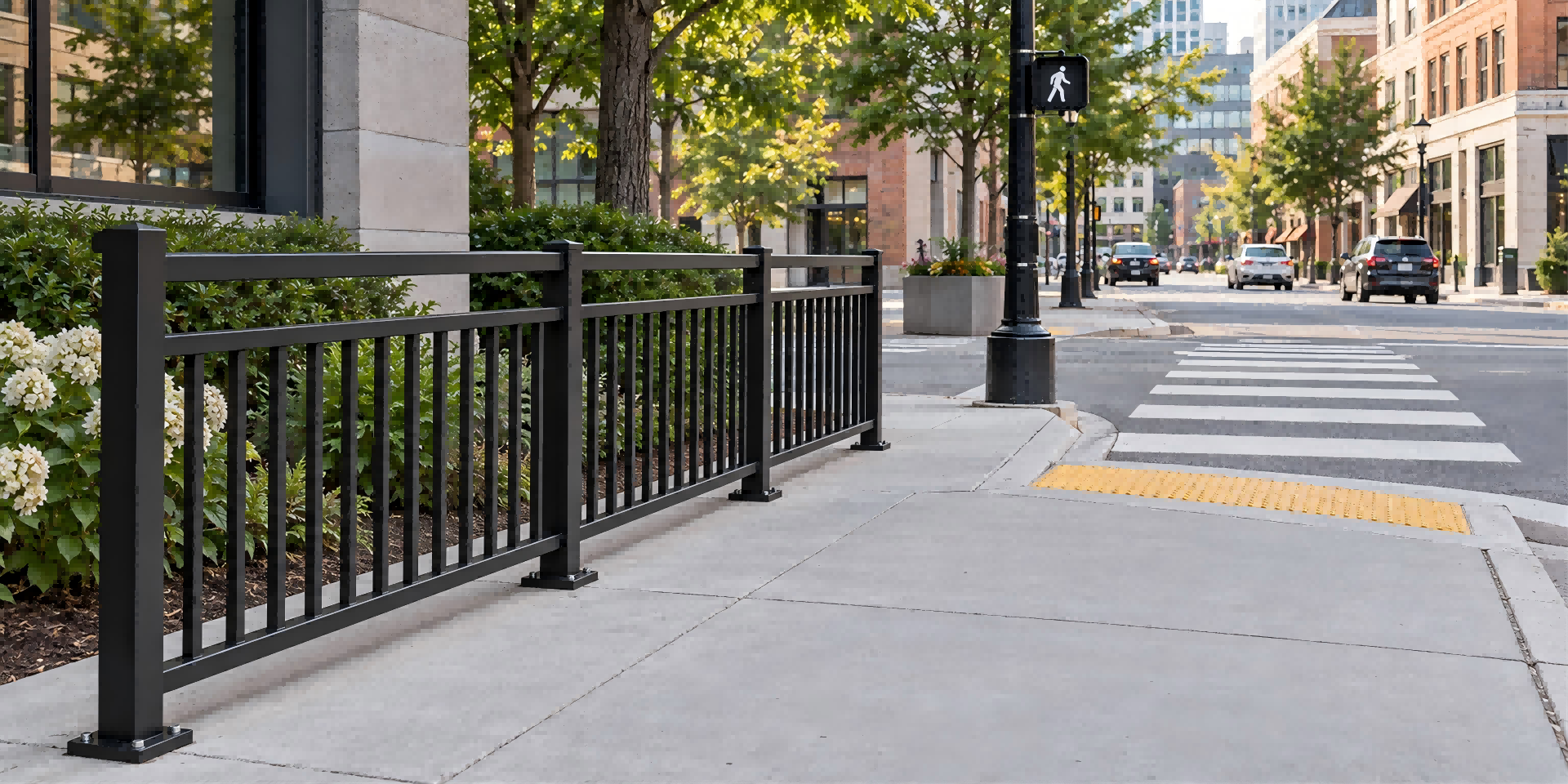

The layout should guide people naturally without blocking an accessible route or forcing unnecessary detours. A guardrail that is poorly positioned can create new conflicts, even when the product itself is well made. Keep curb ramps, tactile surfaces, sightlines and crossing entrances clear. The Hong Kong Transport Planning and Design Manual also includes pedestrian visibility, accessible use and guardrail needs in its road-scheme review considerations (Transport Planning and Design Manual).

2. Clear Standards and Verifiable Documentation

The project specification should identify the product type, governing local requirements and evidence needed for approval. Pedestrian railings and vehicle restraint systems have different purposes and testing requirements, so procurement documents should name the required function explicitly.

Ask suppliers for drawings, material and coating specifications, installation details and applicable test or compliance documents. If the project requires a vehicle restraint barrier, verify the evidence for the complete system and its specified installation configuration under the relevant local framework. FHWA guidance for roadside safety hardware on the U.S. National Highway System, for example, refers to MASH or its predecessor criteria; those requirements should not be assumed to apply universally to municipal pedestrian railings (FHWA Roadside Safety Hardware Memorandum).

3. Materials and Corrosion Protection for the Local Environment

Urban guardrails are exposed to rain, humidity, road salts, pollution and occasional contact with vehicles or maintenance equipment. Galvanized steel and compatible protective coatings are common options, but the right specification depends on the project environment and local requirements.

Request the base material specification, surface-treatment details, coating requirements and maintenance guidance. For coastal, humid or highly polluted locations, define corrosion-protection and inspection criteria before procurement rather than relying on a general description such as “rust resistant.”

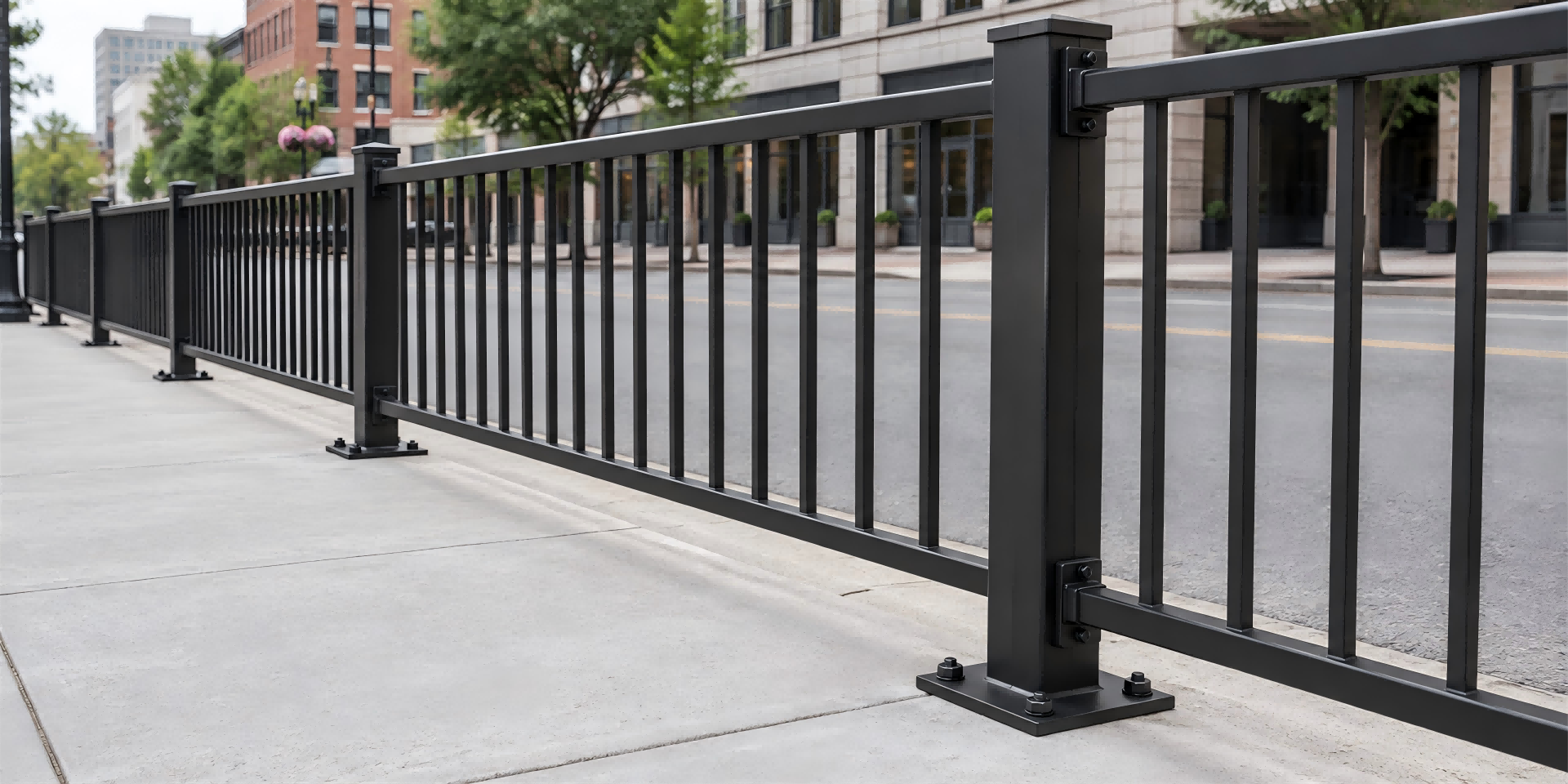

4. Visibility, Safe Details and Accessible Movement

Rail height, infill spacing and finish affect sightlines and pedestrian comfort. Specify smooth edges, secure connections and details that avoid sharp projections or trapping points. Consider children, older adults and people with limited mobility when reviewing the design.

The railing should not obstruct the view between drivers and pedestrians at crossings, junctions or entrances. Review the guardrail together with lighting, road markings, curb ramps and the usable width of the footway. Accessibility depends on the complete layout, not on the railing alone.

5. Practical Installation and Maintainability

Before ordering, confirm post spacing, foundations or anchor plates, connection details, installation sequence and replacement procedures. Modular sections can help teams configure a railing to the project length and replace damaged parts, provided the joints and supports are designed for the site conditions.

Request installation drawings and a maintenance schedule. For vehicle restraint systems, use the specified components and installation configuration; changing rails, terminals, posts or connections can affect system performance.

A Short Procurement Checklist

Before comparing quotations, confirm:

• Is the product for pedestrian guidance, separation or vehicle restraint?

• Which local standards and acceptance requirements apply?

• Are site measurements, crossing points and accessible routes documented?

• What material, finish and inspection requirements are specified?

• Are foundations, connections, terminals and installation instructions included?

• Can the supplier provide relevant drawings and technical documents?

Conclusion

The best traffic guardrail for an urban project is one that matches the site's safety purpose, applicable requirements, local environment and pedestrian layout. Clear specifications help project teams compare suppliers on more than price and reduce ambiguity during installation and maintenance.

FAQ

1. Can a pedestrian guardrail replace a vehicle crash barrier?

No. A pedestrian railing should not be assumed to provide vehicle restraint. Specify a crash-tested vehicle barrier when the project requires that function.

2. Does every urban guardrail need hot-dip galvanizing?

Not necessarily. Choose the surface treatment according to the exposure conditions, project specification and maintenance plan.

3. How can a project team decide whether a pedestrian guardrail is needed?

Review pedestrian movement, crossing locations, road geometry, visibility, accessibility and local guidance before fixing the layout.

4. What documents should buyers request from a supplier?

Request product drawings, material and coating specifications, installation details, applicable standards and relevant test or compliance documents.
